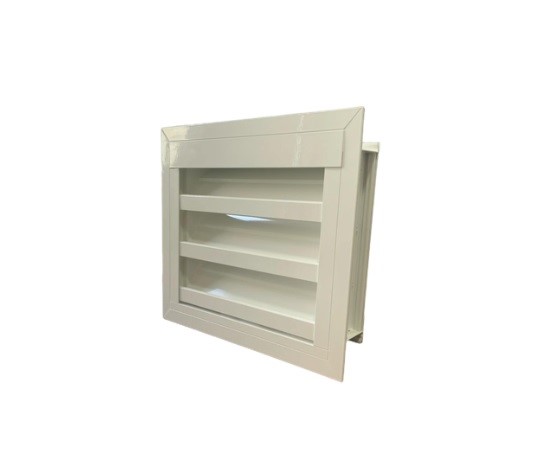

K45-DL & K45-DLF

APPLICATION

Water is carried off by an integral gutter in the blade which is
channeled through an integral downspout in the jamb,
the water is then routed back onto the louver sill and out the
front of the louver which, inmost conditions, eliminates the
need for a subsill or flashing.

STANDARD CONSTRUCTION

FRAME:
Extruded aluminum 1.7mm (0.07”) nominal wall thickness
&101.9mm (4”) depth.

BLADES:
Extruded aluminum 1.6mm (0.063”) nominal wall thickness.

BLADE CENTERS:
92mm (3-5/8”) maximum centers at head and sills.
Corrosion resistant steel fasteners used at assembly.

FLANGE:
25 mm (1”) flange can be added (K45-DLF model) (optional)

Screen:
- Galvanized bird screen (Standard)
- Aluminum bird screen
- Stainless steel bird screen
- Galvanized insect screen
- Aluminum insect screen
- Stainless steel insect screen

FINISH:
- Mill Finish (standard)
- Anodize
- All RAL colors

SIZES:
Minimum width: 8”
Minimum height: 8”
Maximum single section:
Width 144” x Height 92”
Width 92” x Height 144”
Multiple section: Unlimited
Maximum single section area: 13248 in2

N.B: 5mm clearance is deducted from your order size.
For more information please consult our engineers.
