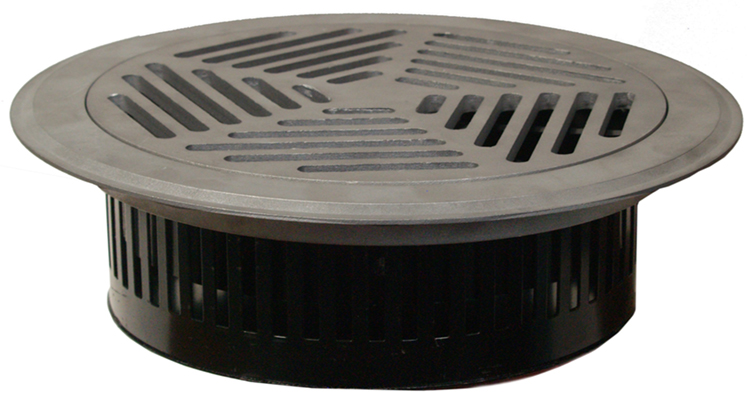

Round Floor Displacement Diffuser (RFDD Series) is used in supply air systems in false floors of offices, halls, theaters, gymnasium etc...
Radial ribs produce swirling discharge surrounding air with low noise.
FEATURES
• Diffuser Core and Trim Ring
- Constructed from aluminum, die cast and deburred.
• Adjustable Volume Grille
- Constructed from galvanized steel sheets.
- Adjustable screw used to set grille position for required air supply volume.
• Swirl Element
- Constructed from galvanized steel sheets.
- Swirl element determines the direction of discharge
• Dirt Basket
- Dirt trap at the bottom of the diffuser.
- Constructed from galvanized steel sheets.
• Sizes:
- Available in 6” and 8” diameters.
- Kindly check illustrations page for more details.
• Finish:
- Diffuser face and trim ring brut finish.
- Inner grille and swirl element painted black.
OPTIONS
• Horizontal or Vertical direction of discharge.
• Plenum Box for control of temperature in individual room.
• All types of RAL finishing.
