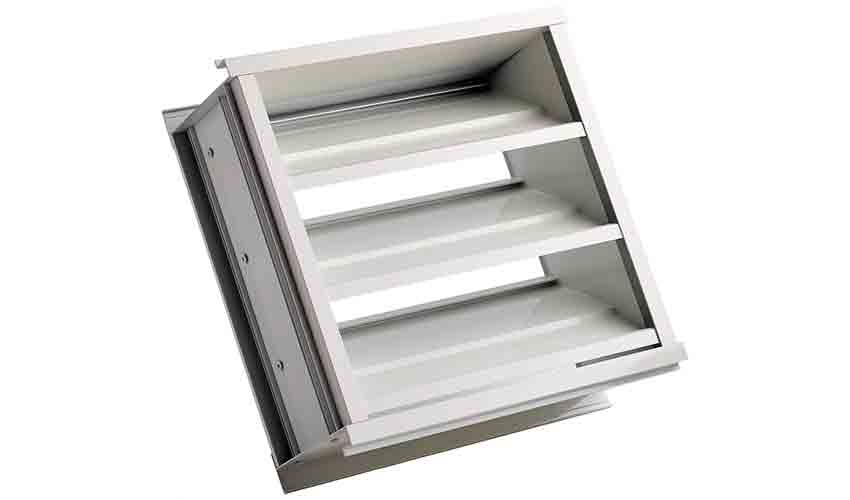

APPLICATION
Designed with a drainable sill and drainable blades to protect air intake and exhaust openings in building exteriors by minimizing water penetration.
Water is carried off by an integral gutter in the blade which is channeled through an integral downspout in the jamb, the water is then routed back onto the louver sill and out the front of the louver which in most conditions eliminates the need for a subsill or flashing.
STANDARD CONSTRUCTION
• FRAME
Extruded aluminum 2.0mm (5/64") nominal wall thickness & 151mm (6") depth.
• BLADES
Extruded aluminum 2.0mm (5/64") nominal wall thickness.
• BLADE CENTERS:
110 mm (43/8") maximum centers at head and sills.
Corrosion resistant steel fasteners used at assembly.
• FLANGE:
30 mm flange can be added (K6-DLF model) (optional)
• SCREEN:
- Galvanized bird screen (standard)
- Aluminum bird screen
- Stainless steel bird screen
- Galvanized insect screen
- Aluminum insect screen
- Stainless steel insect screen
• FINISH:
- Mill Finish (standard)
- Anodize
- All RAL colors
• SIZES:
Minimum width: 10”
Minimum height: 10”
Maximum single section:
Width 144” x Height 92”
Width 92” x Height 144”
Multiple section: Unlimited
Maximum single section area: 13248 in2
N.B: 5mm clearance is deducted from your order size.
